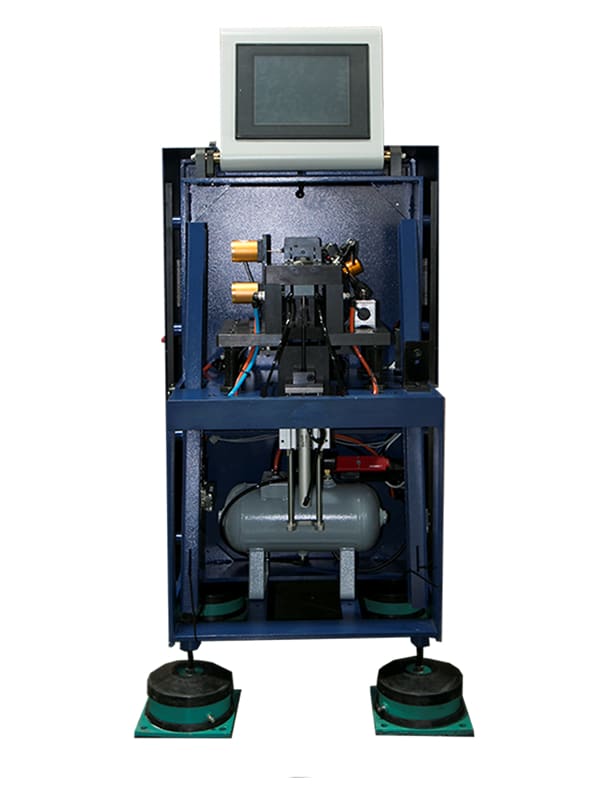

JZABM 밸런싱 머신
turbo balancing machine
기능:
It adopts air-floating pneumatic drive, soft-support high-precision measurement system, measurement data, high precision and good repeatability, full independent intellectual property rights, 그리고 특수 제품은 고도로 맞춤화된 솔루션을 지원할 수 있습니다.;
Technical highlights:
- It adopts air-floating pneumatic drive; the touch screen is used as the human-machine communication interface to set parameters and operate the machine, making the operation very simple;
- It adopts PLC as the main control machine to complete test-related calculations and rotor phase control, soft-support high-precision measurement system, and measurement data with high precision and good repeatability;
- Full independent intellectual property rights, 특수 제품은 고도로 맞춤화된 솔루션을 지원할 수 있습니다.;
Basic parameters:
Target rotor: turbine blades (design can be changed according to the weight and shape of the workpiece)
1.로터 중량: 100-500g
2.로터 직경: φ30 – 95밀리미터
3.측정 속도: 4000분당 회전수(rpm)
4. Number of measurement surfaces: 2
5.구동 방식: air flotation
