Technical Specifications
| Rotor mass range | 0.2-16kg |
| Maximum outer diameter of rotor | 360mm |
| Journal Diameter | 6-70mm |
| Saddle size | 4 inch |
| Motor Power | 0.18kW |
| Balancing speed: Belt Drive(The diameter of the workpiece to be dragged is Φ100mm | 1500 rpm |
| Min.achievable residual unbalance Emar | 4 uinch |
| Unbalance reduction ratio URR | ≥95% |
Product Features
- Extreme accuracy, suitable for all kinds of high-speed rotating rotors;
- H-type hard bearing pedestals, four-speed permanent calibration, simple and fast operation;
- Touch screen visual operation, rich software functions;
- Measuring system can be expanded: high speed function such as Bode diagram, Nyquist diagram, etc.
- For aviation class rotors, equipped with saddle type tile seat of various sizes;
- Design, manufacture and inspection of equipment in accordance with SAE 4048.
Application

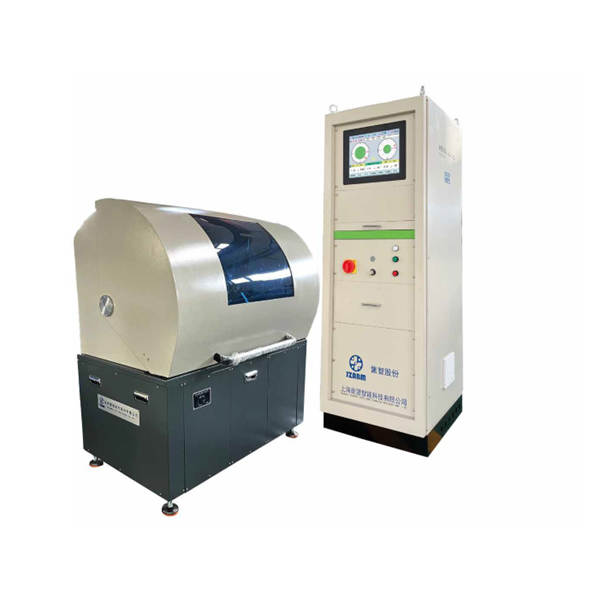

HK1BU horizontal hard bearing balancing machine is suitable for balance detection and correction of high-speed aerospace rotors.
Technical overview
- Model
- HK1BU
