Technical Specifications
| Model (Weight t, Diameter mm) | Speed [min⁻¹] |
|---|---|
| DG 2 (0.16 t, 900 mm) | 1500 to 50000 |
| DG 3 (0.32 t, 900 mm) | 1500 to 50000 |
| DG 30 (0.63 t, 900 mm) | 1500 to 50000 |
| DG 4 (1.25 t, 900 mm) | 1500 to 50000 |
| DG 5 (2.5 t, 1100 mm) | 1500 to 50000 |
| DG 50 (4.5 t, 1300 mm) | 1500 to 50000 |
| DG 6 (8 t, 1700 mm) | 1500 to 50000 |
| DG 7 (12.5 t, 1700 mm) | 1500 to 50000 |
| DG 70 (20 t, 2250 mm) | 1500 to 50000 |
| DG 8 (32 t, 2800 mm) | 1500 to 50000 |
| DG 9 (50 t, 3300 mm) | 1500 to 50000 |
| DG 90 (80 t, 4000 mm) | 1500 to 50000 |
| DG 10 (125 t, 4400 mm) | 1500 to 50000 |
| DG 11 (200 t, 4700 mm) | 1500 to 50000 |
| DG 12 (350 t, 5100 mm) | 1500 to 50000 |
Product Features
Product Overview

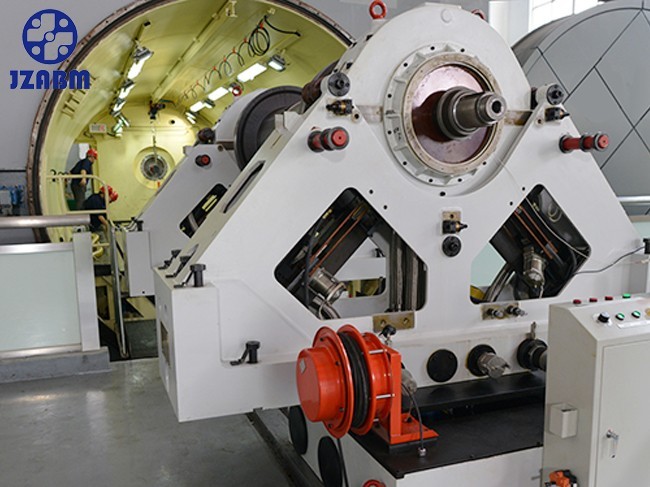

1. Provide balancing equipment and complete mechanical engineering to meet the high-speed balancing measurement requirements of turbine rotors such as steam turbine rotors and generator rotors.
2. Equipped with a support method using plain bearings to support workpieces, suitable for high-speed measurement.
3. A strict and complete quality system, comprehensive processes, inspection methods, and a full range of metalworking equipment ensure product quality.
4. A complete measurement and analysis system, which includes, in addition to the influence coefficient method, auxiliary analysis systems such as double-frequency mode, Bode plots, and Nyquist plots.
