Technical Specifications
| Rotor mass range | 50 kg |
| Maximum outer diameter of rotor | 14～23(inch) |
| tire pressure | 550(kPa) |
| test beat | <20s |
| Test accuracy | ±1.0g |
| Balancing speed | 600 rpm |
| Angle accuracy | ±2.5° |
Product Features
01
For dynamic unbalance test of semi-steel radial tires of automobiles;
02
It can automatically identify tire barcodes, and has the functions of centering and automatic lubrication;
03
The tires can be automatically marked and graded according to the test results;
04
Fully independent intellectual property rights, special products can support difficult customized solutions.
Application

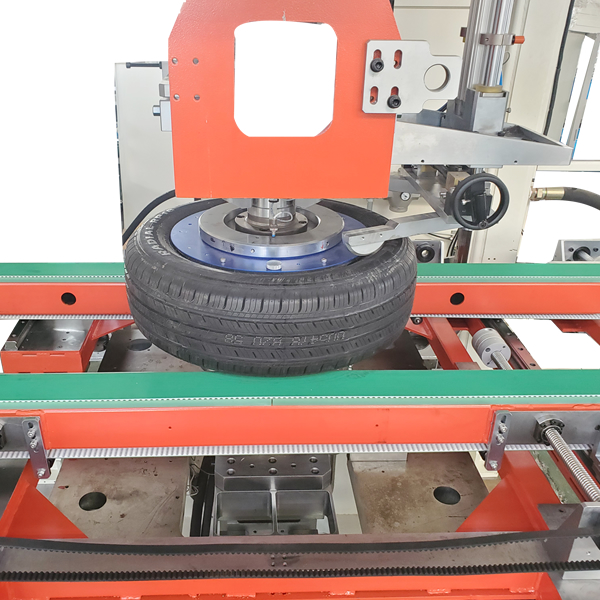

This tire balancing machine is used for dynamic balance detection of automobile tires. It can measure the static imbalance, dynamic imbalance and tire geometric dimensions of the tire (tire beat, bulge, dent).
