Product Features
It adopts air-floating pneumatic drive, soft-support high-precision measurement system, measurement data, high precision and good repeatability, full independent intellectual property rights, and special products can support highly customized solutions;
Technical highlights:
- It adopts air-floating pneumatic drive; the touch screen is used as the human-machine communication interface to set parameters and operate the machine, making the operation very simple;
- It adopts PLC as the main control machine to complete test-related calculations and rotor phase control, soft-support high-precision measurement system, and measurement data with high precision and good repeatability;
- Full independent intellectual property rights, special products can support highly customized solutions;
Basic parameters:
Target rotor: turbine blades (design can be changed according to the weight and shape of the workpiece)
1.Rotor weight: 100-500g
2.Rotor diameter: φ30 – 95mm
3.Measurement speed: 4000rpm
4. Number of measurement surfaces: 2
5.Drive method: air flotation
Application

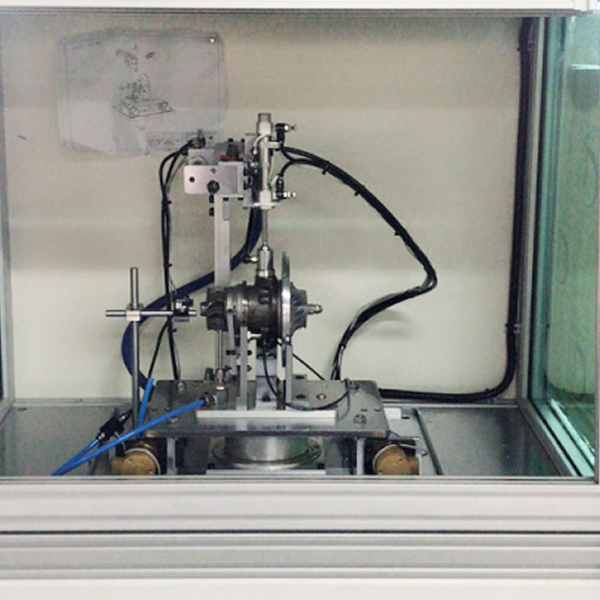

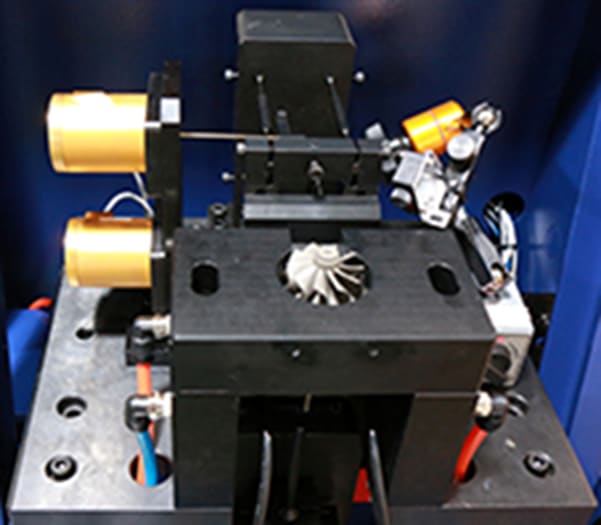

The machine is designed for the balancing of Turbo Core Assembly to eliminate the dynamic deflection of the turbine rotor.
Size：840 X 640 X 1400 mm
Weight：280kg
Work pressure：0.7～0.8Mpa
Application of the armature ：
Turbor shaft/hole size
Shaft diameter: 6~12.2mm
Hole diameter: 4~8mm
Weight: 100g～700g
